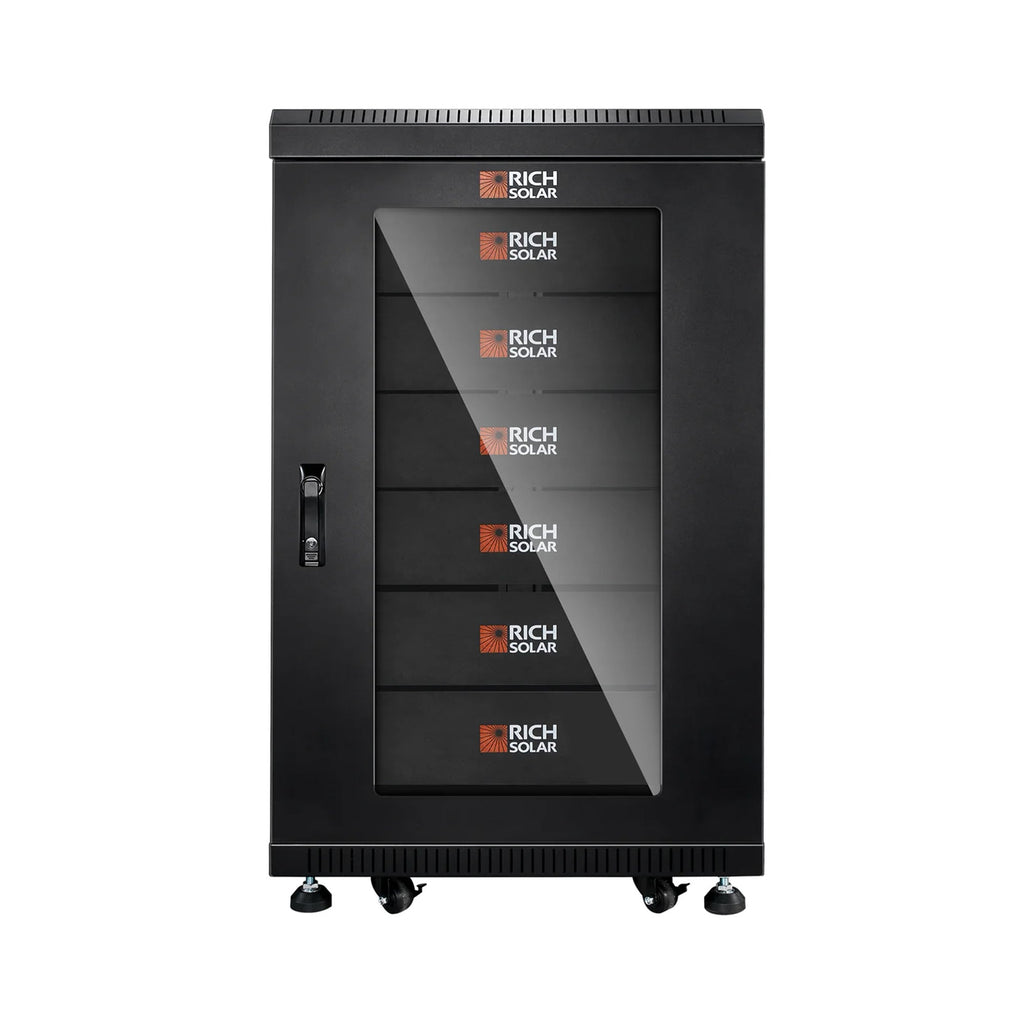

Rich Solar 6-Slot Battery Server Rack for ALPHA 5 PRO (Up to 30.72kWh)

A pre-assembled, enclosed steel cabinet that holds up to six ALPHA 5 PRO batteries (30.72kWh). It has 600A copper busbars with covers, top and side cable entry, four-side access for servicing, and locking casters with leveling feet. Batteries are sold separately.

Key features

• 30.72kWh Scalable Storage: Supports up to 6 ALPHA 5 PRO batteries for expandable energy storage.

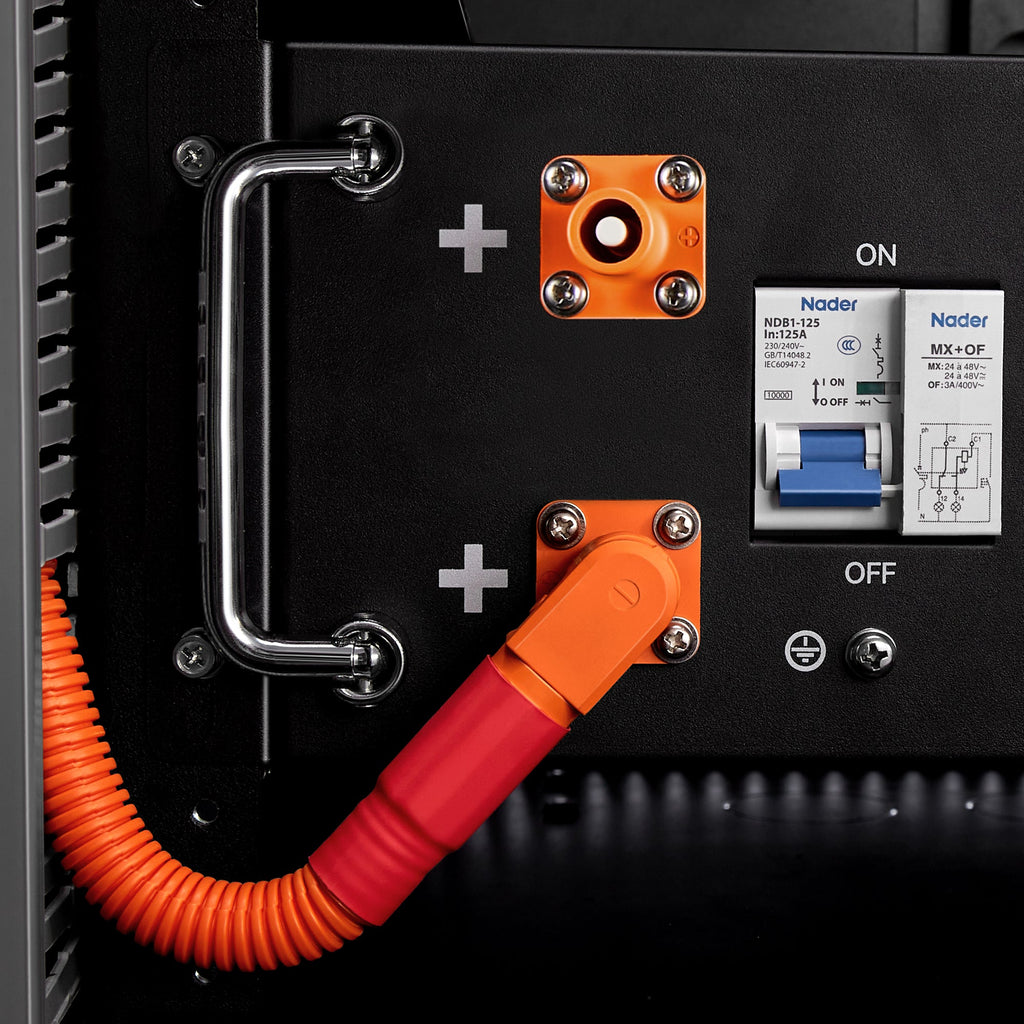

• 600A Copper Busbars: Delivers safe, efficient high-current power distribution.
• Heavy-Duty Steel Cabinet: Welded steel construction with a durable powder-coated finish.
• Pre-Assembled Design: Ready to install, reducing setup time and labor.
• Flexible Cable Routing: Top and side cable entry points simplify system wiring.

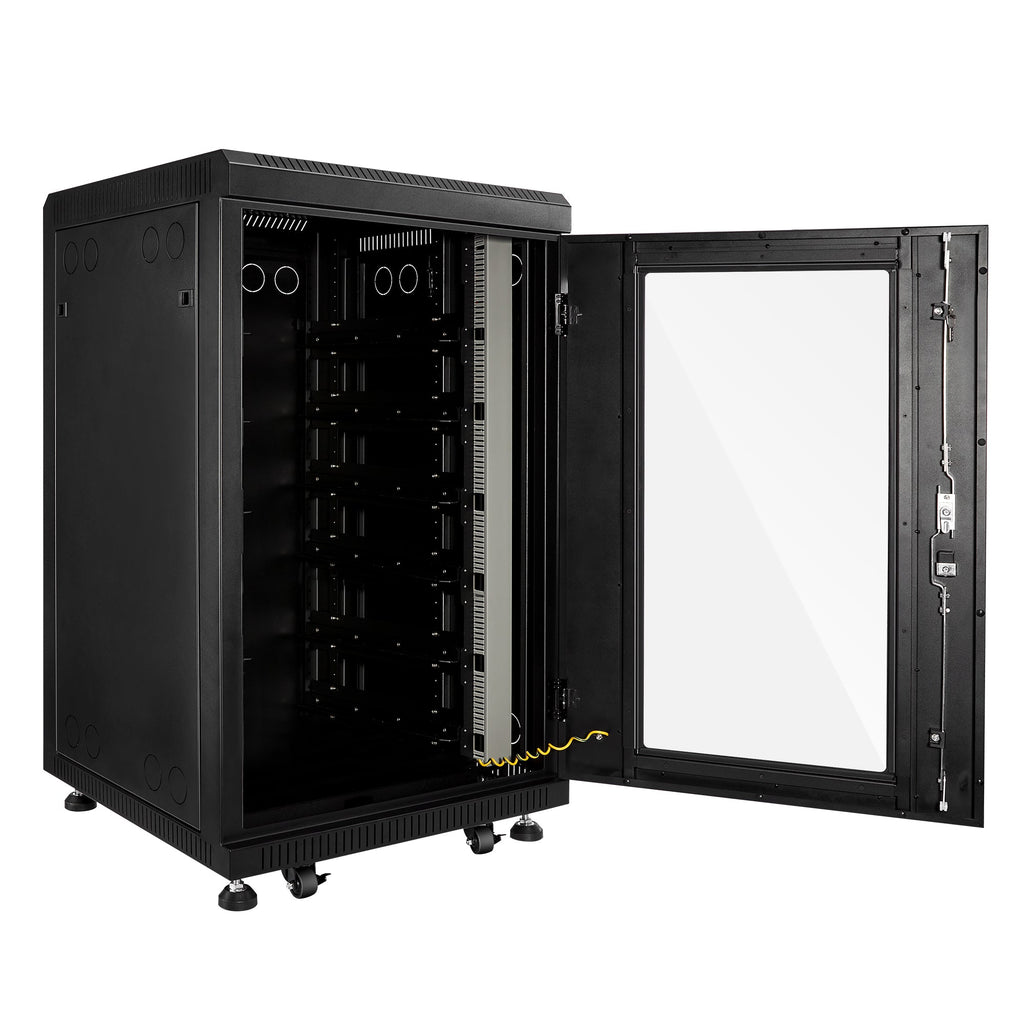

• Easy Maintenance: Four-side access allows quick battery installation and servicing.

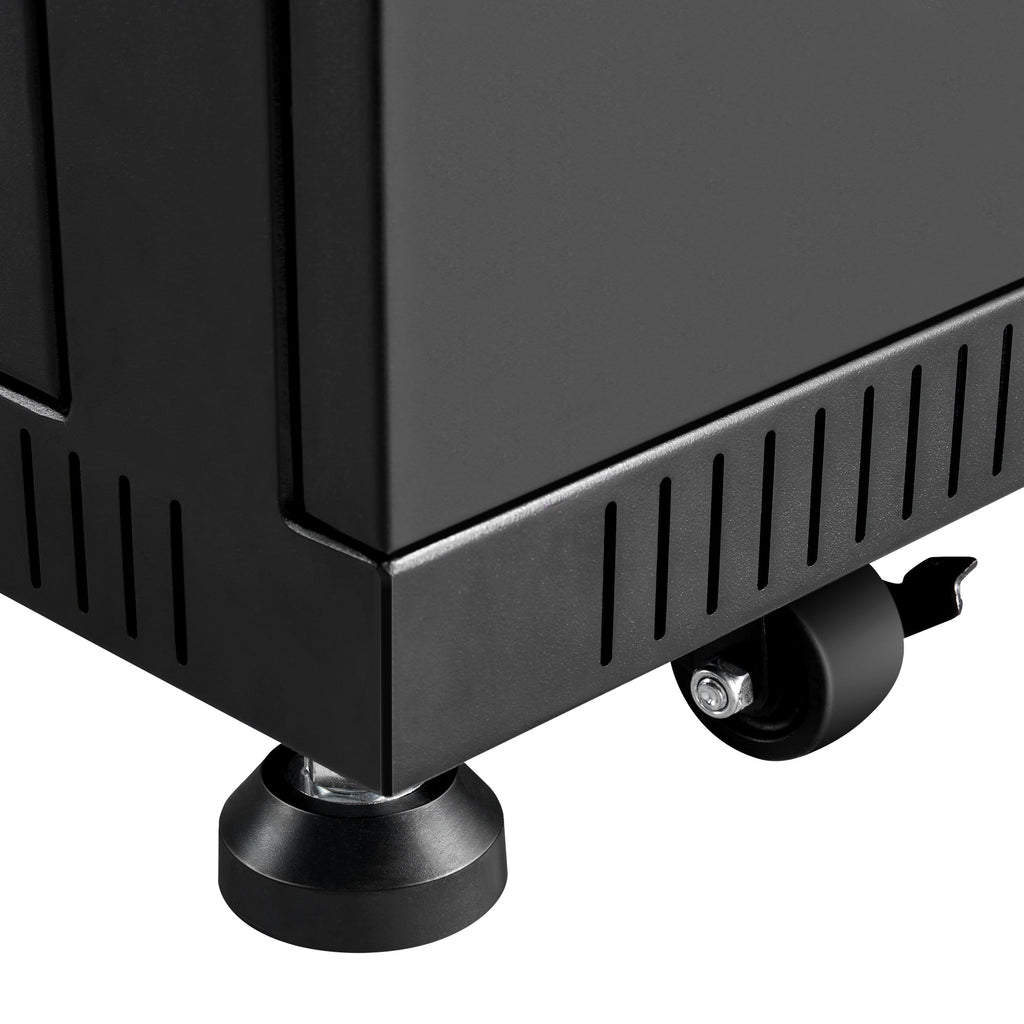

• Mobile & Secure: Locking casters and leveling feet provide easy positioning and stable operation.
• ESS Integration Ready: Supports parallel battery expansion and inverter communication.

Specifications

• Modules in Parallel: 6
• Max Busbar Current: 600A

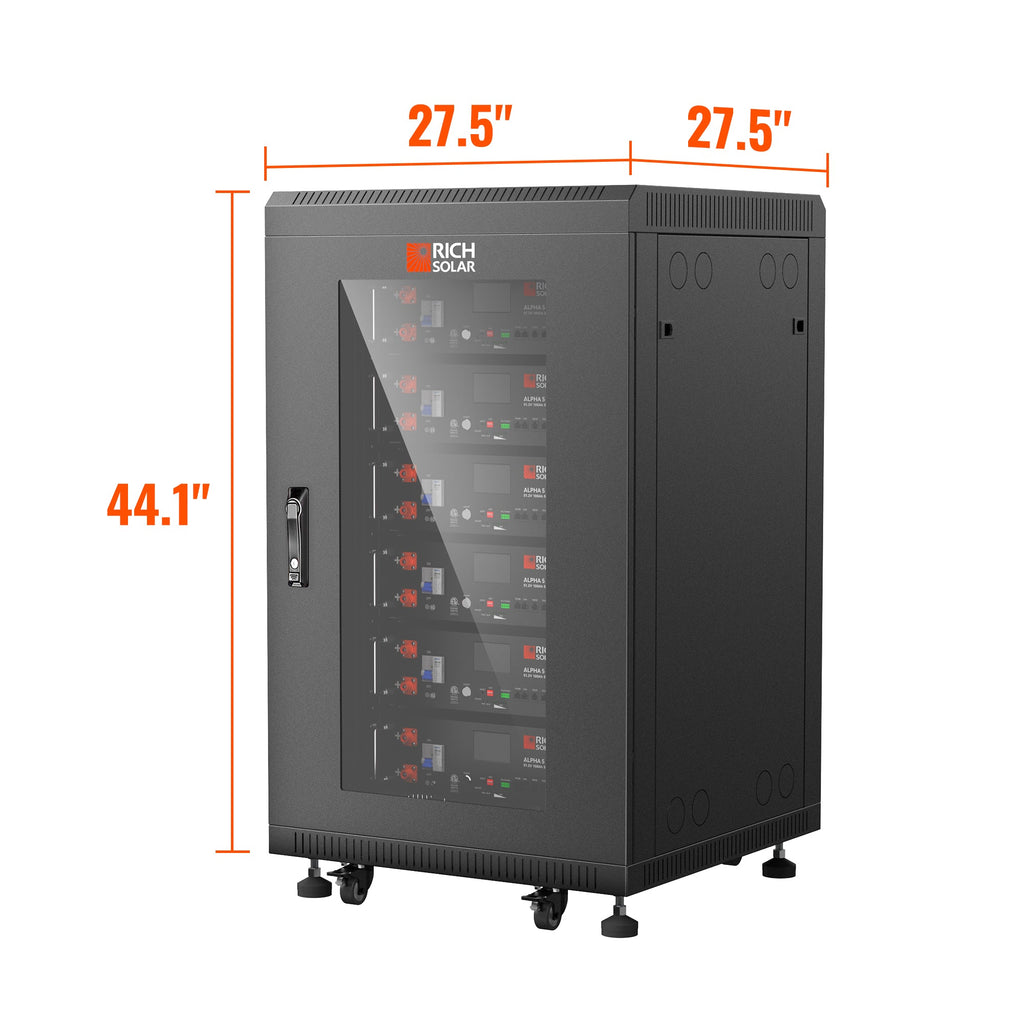

• Dimensions (W × D × H): 27.56 × 27.56 × 44.09 in
• Weight (with casters): 224.87 lb
• Operating Temperature: 4°F to 113°F
• Warranty: 5 Years
• Package Dimensions: 30 × 30 × 49 in
• Gross Weight: 228 lb
• Model / SKU: RS-SRA5P

Shipping, warranty & help

Ships free to the lower 48 states, directly from Rich Solar’s warehouse in California. Large kits and heavy items ship by freight truck with residential liftgate delivery. Covered by Rich Solar’s 5 years manufacturer warranty. Not sure what size system you need? Contact us and we’ll help you choose.
